Product Description
Features

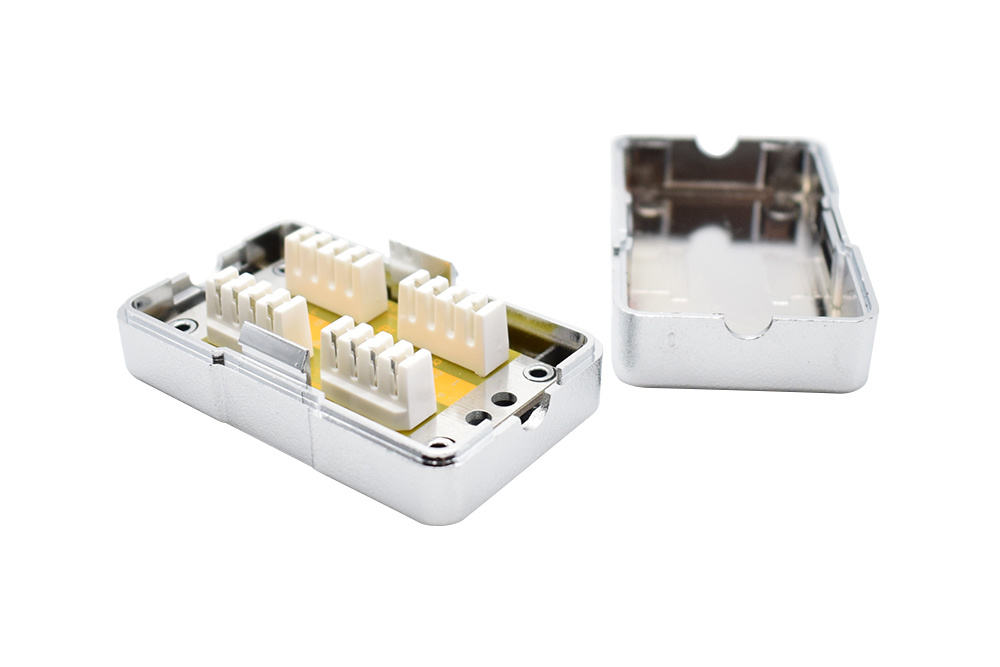

· Connection box for Cat.6 solid network cables
· Easy cable installation
· Suitable for 26-22 AWG
·Shielded housing with strain relief, silver
Electrical
Current Rating: 1.5 Amps
Insulation Resistance: ≥ 500 MΩ
Contact Resistance: ≤20 mΩ
DC Resistance: ≤ 0.3 Ω
DC/AC Volt Endurance： DC1000V/AC750V 1min
Mechanical
Mating cycles : 750 cycles minimum
Operating temperature : -10~60°C
Operating humidity : 10%~90%RH
Storage temperature : -40°C TO 68°C
Physicals
Housing: ABS housing,metallized
PCB: FR-4,
Jack Wire: 0.35 mm Phosphor bronze gold over nickel plating
